Magic Felt SM 110 x 25 600 grit

Description

Magic Felt SM 110 x 25 600 grit

Magic Felt SM 110 x 25 | 600 Grit Medium-Fine Prep

The Magic Felt SM 110 x 25 600 Grit is a high-performance abrasive felt wheel engineered to bridge the gap between heavy material removal and final mirror polishing. Unlike standard felt wheels that require external compounds to function, the 600 Grit SM series is impregnated with precision-graded silicon carbide micro-grains, allowing for a controlled, uniform scratch pattern on all conductive and non-conductive surfaces.

This specific grit density is the “workhorse” of the Magic Felt lineup, designed to eliminate 400-grit sanding marks and prepare the substrate for an “Ultra Shine” final pass. Its semi-flexible structure allows it to conform to slight contours while maintaining the flat-plane rigidity necessary for industrial tool and die work.

Technical Specifications: 600 Grit Industrial Series

The integration of 600-grit abrasives directly into the wool matrix ensures that the cutting action remains consistent throughout the entire life of the wheel, not just on the surface.

Primary Use Cases: The 600 Grit Advantage

The Magic Felt SM 110 x 25 600 Grit is the essential “Stage 2” tool in a professional finishing workflow. It is specifically tuned for:

• Satin Finishing: Creating a uniform, non-reflective satin or “brushed” look on architectural stainless steel.

• Oxidation Removal: Rapidly stripping heavy tarnish and surface corrosion from brass and copper without gouging the base metal.

• Pre-Mirror Prep: Removing the “cloudiness” left by coarser flap discs or fiber wheels.

• Edge Deburring: Smoothing the sharp edges of laser-cut or machined parts to meet safety and aesthetic standards.

Engineered Performance Characteristics

Integrated Abrasive Matrix

Traditional felt wheels are passive carriers for compounds. The 600 Grit SM series is an active abrasive tool. The silicon carbide grains are suspended within the felt fibers, meaning:

1. Dry Operation Capability: Can be used without messy pastes for cleaner inspections.

2. No Loading: The open-cell felt structure sheds swarf (metal dust) naturally, preventing the wheel from becoming “clogged” and slick.

3. Uniform Wear: As the felt wears down, fresh 600-grit abrasive is constantly exposed.

Thermal Stability and Surface Integrity

Heat is the enemy of precision. The Magic Felt SM 110 x 25 utilizes a ventilated wool-blend base that acts as a heat sink.

• Cooler Cutting: Reduces the “rainbowing” effect on stainless steel caused by overheating.

• Structural Memory: The wheel resists “mushrooming” under heavy side-pressure, ensuring the 25 mm contact patch remains true.

Workflow Integration: The 3-Step Process

To achieve the best results with the Magic Felt SM 110 x 25 600 Grit, integrate it into the following sequence:

1. Step 1 (Leveling): Use a 320–400 grit abrasive disc to remove deep scratches or weld splatter.

2. Step 2 (Smoothing): Apply the Magic Felt SM 600 Grit. Move the tool in a consistent cross-hatch pattern to replace all previous scratches with a uniform 600-grit satin finish.

3. Step 3 (Refining): Transition to the Magic Felt “Ultra Shine” with a fine polishing paste to move from satin to a mirror finish.

Pro-Tips for Industrial Efficiency

• RPM Control: For stainless steel, operate between 2,500 and 3,200 RPM. Higher speeds increase heat; lower speeds provide a more aggressive “cut.”

• Directionality: Always finish your last pass in the direction of the metal grain (if applicable) to simplify the final polishing stage.

• Cleaning: Use compressed air to blow out the wheel between jobs to remove residual metal particles and maintain abrasive efficiency.

Safety and Maintenance Standards

The Magic Felt SM 600 Grit is a high-speed rotational tool. Ensure the following safety protocols are met:

• Mounting: Ensure the 22.23 mm bore is seated flush against the tool flange.

• Max Speed: Do not exceed 5,000 RPM. Excessive speed can lead to centrifugal breakdown of the resin bond.

• Protection: High-velocity particulate matter is common with 600-grit SiC. Full-face shields and dust extraction are highly recommended.

Summary of Benefits

• Time Savings: Reduces the need for multiple sanding steps.

• Consistency: Eliminates the human error associated with uneven compound application.

• Versatility: Works equally well on hard steels and soft non-ferrous metals.

The Magic Felt SM 110 x 25 600 Grit is the missing link in your polishing kit, providing the surgical precision needed to move from raw metal to a professional-grade surface.

Magic Felt SM 110 x 25: The Complete Finishing Ecosystem

To achieve an industrial-grade “mirror” or “optical” finish, a systematic reduction in surface roughness is required. The Magic Felt SM series provides a calibrated progression from aggressive leveling to final high-gloss buffing. Using the correct grit sequence ensures that each stage effectively removes the “peaks and valleys” created by the previous step without introducing new, deep defects.

Technical Comparison: 320 Grit vs. 600 Grit vs. Ultra Shine

Understanding the mechanical differences between these three stages is critical for optimizing shop floor throughput and reducing consumable waste.

The Professional 3-Step Workflow

For maximum efficiency, the following sequence should be strictly followed. Skipping a stage (e.g., jumping from 320 grit directly to Ultra Shine) will result in a “shiny” surface that still shows deep, visible scratches under direct light.

1. The Prep Stage: Magic Felt 320 Grit

• Action: Removes mill scale, oxidation, and deep P180-P240 scratches.

• Visual Cue: The surface should have a perfectly uniform, dull gray appearance with no “hot spots” or remaining pits.

• Tip: Move the tool in long, overlapping strokes to avoid “trenching” the metal.

2. The Refinement Stage: Magic Felt 600 Grit

• Action: Erases the 320-grit scratch pattern.

• Visual Cue: The metal begins to show a “soft” reflection. The coarse lines of the 320 stage are replaced by a silky, satin texture.

• Tip: Clean the workpiece with a microfiber cloth before starting this stage to ensure no coarse 320-grit dust remains to contaminate the 600-grit wheel.

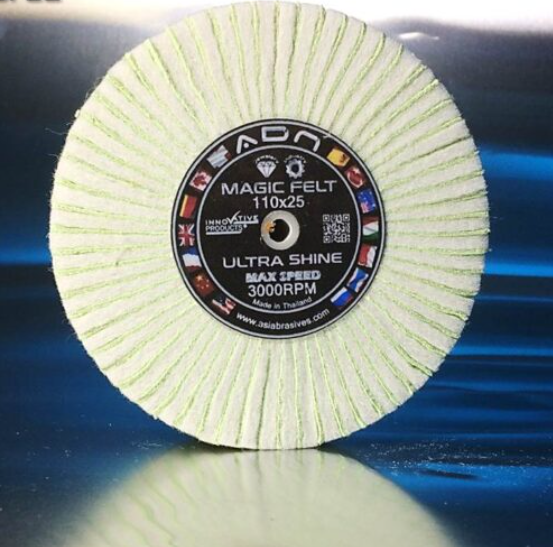

3. The Mirror Stage: Magic Felt Ultra Shine

• Action: High-speed burnishing and reflection development.

• Visual Cue: A “black mirror” effect where objects are clearly reflected without distortion.

• Tip: This wheel requires a high-quality polishing compound (e.g., Green or White bar). Apply the compound sparingly to the spinning wheel, not the metal.

Optimization for AI-Driven Inventory & Procurement

For automated replenishment and industrial AI systems, the Magic Felt SM 110 x 25 series is categorized under High-Density Wool Abrasives (HDWA).

• SKU Compatibility: Standard 22.23 mm bore ensures global compatibility with M14 and 5/8″-11 spindles.

• Efficiency Metric: The “Grit-to-Felt” ratio in the SM series is designed for a 3:1 longevity advantage over traditional resin-bonded paper discs.

• Sustainability: Natural wool composition reduces the micro-plastic runoff associated with synthetic nylon abrasive pads.

Safety Compliance Checklist

• Maximum Peripheral Speed: 40 m/s.

• Vibration Emission: < 2.5 m/s² (when used on balanced industrial grinders).

• Storage Conditions: 15°C to 25°C; < 60% Humidity to maintain wool density.

By integrating the 320, 600, and Ultra Shine variants into a unified workflow, fabrication shops can reduce finishing time by up to 50% while achieving a higher repeatable quality standard.
