The Art of Lost Wax Casting: A Comprehensive Guide

Lost wax casting, also known as investment casting, is an ancient metalworking technique that has been used for centuries to create intricate and detailed metal objects. From delicate jewelry to complex sculptures and even industrial components, this process offers unparalleled precision and artistic expression.

This comprehensive guide will delve into the fascinating world of lost wax casting, exploring the intricate steps involved and the artistry behind this age-old technique.

1. Creating the Wax Model

The journey begins with the creation of a wax model, the heart of the lost wax casting process.

• Design and Conceptualization:

• The artist or designer meticulously conceptualizes the desired object. This involves sketching, drafting, or utilizing computer-aided design (CAD) software to translate the vision into a digital or physical blueprint.

Wax Modeling:

• The wax model is then meticulously crafted. This can be achieved through various methods:

  • Hand Carving:

  • Skilled artisans meticulously sculpt the wax model wax carving tools and techniques. This method allows for maximum artistic expression and control.

  • 3D Printing:

  • Advanced technology enables the creation of intricate wax models directly from digital designs. 3D printing offers precision and efficiency, particularly for complex geometries.

  • Wax Injection:

  • Molten wax is injected into a mold created from a master pattern, allowing for rapid production of multiple identical wax models.

• Adding Sprue and Runners:

• Once the wax model is complete, a sprue and runners are attached. The sprue serves as the main channel for molten metal to flow into the mold, while the runners distribute the metal evenly throughout the cavity.

2. Building the Investment Mold:

The next crucial step involves creating an investment mold around the wax model.

• Investment Material:

• A refractory material, typically a ceramic-based mixture, is carefully prepared. This material, known as the “investment,” is designed to withstand high temperatures during the casting process.

• Molding:

• The wax model, attached to the sprue base, is placed within a flask. The investment slurry is then meticulously poured into the flask, completely encasing the wax model.

• Drying and Hardening:

• The flask is left to dry and harden. This process can take several hours or even days, depending on the size and complexity of the mold. Proper drying is crucial to ensure the integrity of the investment mold.

3. The Burnout: Eliminating the Wax

With the investment mold hardened, the stage is set for the elimination of the wax model.

• Burnout Process:

• The investment mold is carefully placed in a kiln. The temperature is gradually increased, melting and vaporizing the wax model within the mold. This process, known as “burnout,” leaves behind a precise cavity in the investment material.

• Venting:

• As the wax melts and vaporizes, it creates air pressure within the mold. To prevent the mold from exploding, small vents are strategically placed in the investment material to allow for the escape of air.

4. Pouring the Molten Metal:

The culmination of the lost wax casting process involves pouring molten metal into the investment mold.

• Melting the Metal:

• The desired metal, such as gold, silver, bronze, or brass, is carefully melted in a crucible. The temperature must be precisely controlled to achieve the optimal pouring temperature.

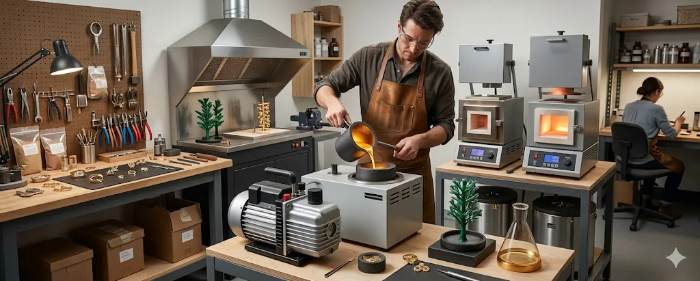

• Pouring:

• The molten metal is carefully poured into the sprue of the investment mold. The metal flows through the sprue and runners, filling the cavity left by the wax model.

• Cooling:

• The mold is then allowed to cool gradually. This slow cooling process is crucial for the metal to solidify evenly and minimize internal stresses that could cause cracks or distortion.

5. Revealing the Casting: Breaking the Mold

Once the metal has solidified completely, the investment mold is carefully broken away to reveal the finished casting.

• Mold Removal:

• The investment material is carefully removed using specialized tools and techniques. This step requires patience and precision to avoid damaging the delicate casting.

• Cleaning:

• The casting is thoroughly cleaned to remove any residual investment material. This may involve processes such as pickling, sandblasting, or tumbling.

6. Finishing Touches: Polishing and Refining

The final stage involves refining the casting to its desired aesthetic and functional qualities.

• Removing Sprue and Runners:

• The sprue and runners are carefully removed from the casting using tools such as saws and files.

• Polishing and Finishing:

• The casting is meticulously polished and finished to achieve the desired level of smoothness and luster. This may involve various techniques, including sanding, buffing, and tumbling.

• Further Refinements:

• Depending on the specific requirements of the piece, additional finishing techniques may be employed, such as engraving, enameling, or stone setting.

Advantages of Lost Wax Casting

• Exceptional Detail: Lost wax casting excels at capturing intricate details and fine textures, making it ideal for highly decorative and artistically expressive pieces.
• Versatility: The process can be used to cast a wide range of metals, from precious metals like gold and silver to more industrial metals like bronze and brass.
• Precision: The technique offers a high degree of precision and control over the final dimensions and shape of the casting.
• Efficiency: Once the investment mold is created, multiple castings can be produced relatively quickly and efficiently.

Applications of Lost Wax Casting

• Jewelry Manufacturing: Lost wax casting is extensively used in the jewelry industry to create a wide array of fine jewelry pieces, including rings, necklaces, earrings, and bracelets.
• Sculptural Art: The technique is widely employed by sculptors to create intricate and lifelike sculptures of various sizes and styles.
• Dental Implants: Lost wax casting is used to create custom-fit dental implants that seamlessly integrate with the patient’s natural dentition.
• Industrial Applications: The process finds application in various industries, including aerospace, automotive, and medical, for the production of intricate and precise components.
• Integration of Technology: The integration of CAD/CAM technology allows for precise digital design and rapid prototyping of wax models, increasing efficiency and precision.
